Help with brake line routing setup

Tom24GR

Member
Hello everyone,

I recently bought a 2007 FZ6 (the one with the 2 4-piston non-floating calipers) and the previous owner had installed a Brembo Master cylinder 16 mm (but its not one of the aftermarket ones, I think it came stock on some other Yamaha- maybe an old r6 or something). Each brake line is connected separately to the master cylinder which has one of those long/ double banjo bolts.

My problem with this setup it that I cannot properly rotate the master cylinder (and therefore the brake lever) because the end of the banjo bolt is blocked by the accelerator cable adjuster (and the last accelerator cable broke due to this contact). This makes it so that the brake lever is high up and it hurts my wrist.

Additionally there is some slight snagging when I turn the bars all the way to the left. The previous owner didn't route the brake lines through the little cable holder attached to the triple tree.

My question is, what can I do about this? I have seen setups where there is one line hooked up to the master cylinder and the line from the other caliper attaches to the brake line from the right caliper (instead of going back to the master cylinder directly). Or maybe could I get some sort of angled banjo bolt? I tried looking up "90 degree banjo bolt" on google but I couldn't find anything that resembles something that would fit.

Any ideas on what I could do to solve this?

Thanks in advance.


trepetti

It's all good!
Elite Member
Site Supporter
Pictures would help. If the rotation is stopped by one of the brake lines, you can get new brake lines with an offset banjo to try and clear the cables. I believe HEL will help with clearance issues. I have the same setup but with the stock master cylinder and dual Galfer SS lines and it works fine.

If you have to make compromises, I would revert to a stock master cylinder before I went to a single line overt-the-fender setup I am a big believer in having more brake fluid, which results in cooler brake fluid. Also it is easier to get maintenance parts when you know the exact make and model of the part.

A new front master is $130.00 at Partzilla. New lines will cost you nearly as much. And with the new master, you get a NEW master, all rebuilt and ready to go. Just reroute the lines when you make the swap.
I LOVE Brembo components, but I would not want anyone messing with my brakes unless I KNEW they selected the correct part. It is really easy to make things different. Making them BETTER requires research an planning.

It is really tough to make the stock brakes better. And impossible to make them better enough to tolerate other problems from the change.


Tom24GR

Member
Yeah I get what you mean. The master cylinder works great its just that the banjo bolt from the master cylinder his that adjuster for the accelerator cable. My first thought was to get one of those motion pro accelerator cable housings that go over the top of the handlebar (as opposed to the stock one that sits under) but they don't make one for the FZ6. The actual routing I can figure it out but the banjo bolt at the master cylinder is the bigger issue. Ill try to get some pics up here afterwards.


trepetti

It's all good!
Elite Member
Site Supporter

TownsendsFJR1300

2007 FZ6
Site Supporter
I'd just install the single line down (I did initially have two separate lines) from the master cylinder,
then go over the fender to the right(starboard) side, just as it came stock..

Just a little neater install looking than two separate lines from the MC to the calipers...

As noted, if the aftermarket master is awkward, etc, I'd replace that..

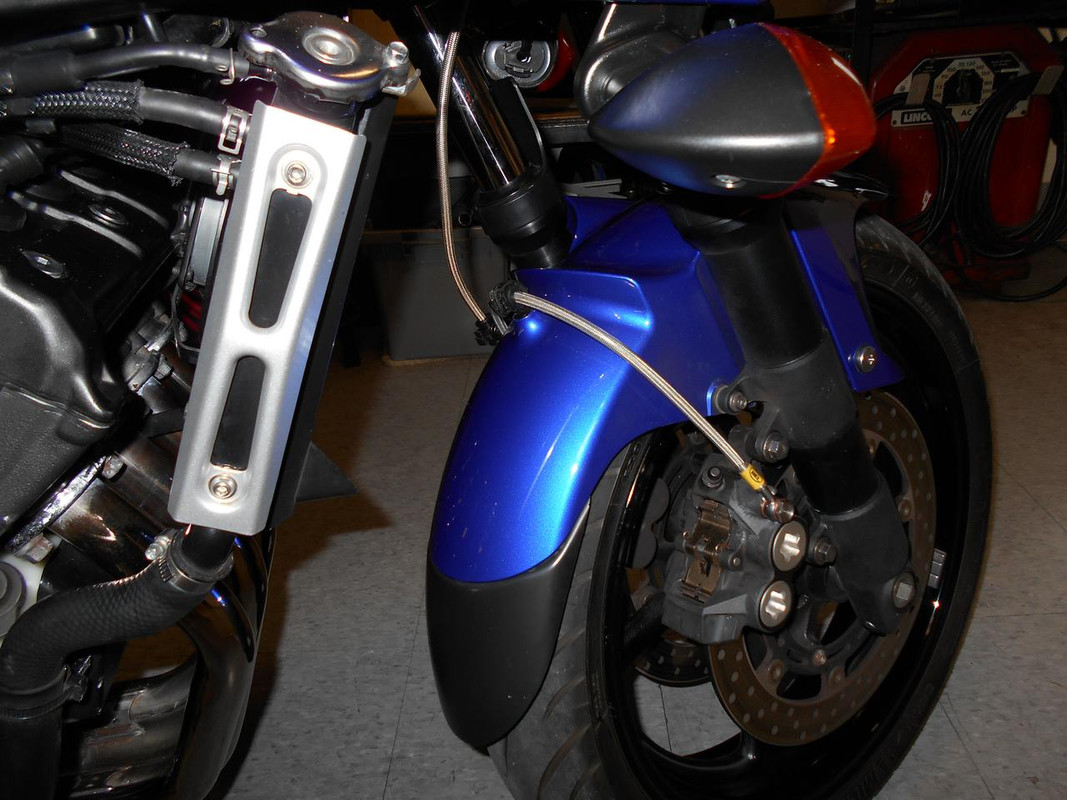

My "HEL" SS brake line set up:
